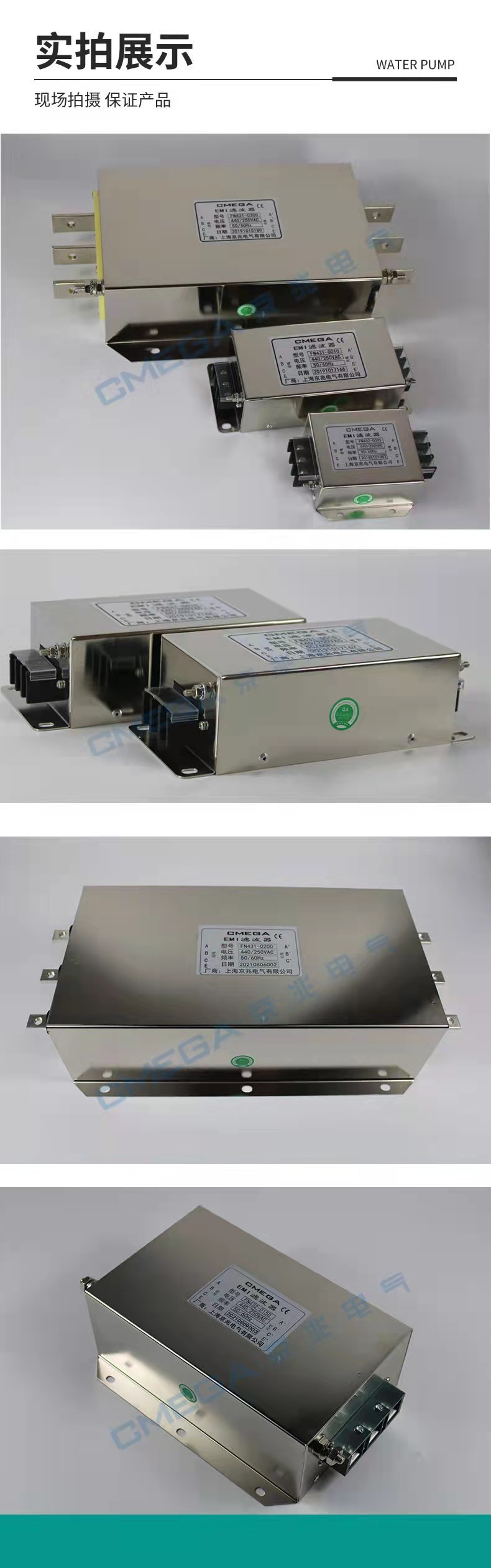

Input filter
Product features:
The product is used for noise suppression in the input harmonic frequency converter, inhibition of external radio interference and instantaneous impact, surge interference of frequency converter, with line filter and radiation filtering effect, with good common mode and differential mode interference suppression. Widely used in frequency converter, motor drive, elevator, data processing systems, telecommunication systems and other equipment.
◇ rated voltage: 440V/250V AC
◇ the test voltage (1 minutes): line to line 1500V DC
Line to line 1500V AC/2500V DC
◇ operating frequency: 50/60Hz
◇ temperature range: -25 ~ 85 ℃
适配功率(KW) |
产品型号 |
额定电流 |
适配功率(KW) |
外形尺寸:长*宽*高 |
安装尺寸:长*宽 |
孔径大小 |
0.75-1.5 |
FN431-0005 |
5 |
0.75-1.5 |
137.5*105*44 |
50.8*95.3 |
4.5*6.5 |
2.2-4 |
FN431-0010 |
10 |
2.2-4 |
202*86*58 |
184*70 |
6.4*9.4 |
5.5-7.5 |
FN431-0020 |
20 |
5.5-7.5 |
261*100*90 |
243*80 |
6.4*9.4 |
11-15 |
FN431-0036 |
36 |
11-15 |
6.4*9.4 |
18.5-22 |
FN431-0050 |
50 |
18.5-22 |
6.4*9.4 |
30 |
FN431-0065 |
65 |
30 |
285*180*90 |
180*165 |
6.4*9.4 |
37 |
FN431-0080 |
80 |
37 |
365*200*90 |
260*185 |
6.4*9.4 |
45 |
FN431-0100 |
100 |
45 |
6.4*9.4 |
55-75 |
FN431-0150 |
150 |
55-75 |
6.4*9.4 |
90 |
FN431-0200 |
200 |
90 |
6.4*9.4 |
110-132 |
FN431-0250 |
250 |
110-132 |
380*220*90 |
180*195 |
6.4*9.4 |
160 |
FN431-0300 |
300 |
160 |
6.4*9.4 |
200 |
FN431-0400 |
400 |
200 |
445*260*128 |
165*245 |
6.4*7.5 |
220 |
FN431-0500 |
500 |
220 |
6.4*7.5 |
250-280 |
FN431-0600 |
600 |
250-280 |
6.4*7.5 |
315 |
FN431-0800 |
800 |
315 |
6.4*7.5 |
450 |
FN431-1000 |
1000 |
450 |
610*290*150 |
245*270 |
6*10 |
560 |
FN431-1200 |
1200 |
560 |
6*10 |
